Krix KA-1100 — Dedicated Subwoofer Amplifier with Intelligent DSP

The Krix KA-1100 is a purpose-built subwoofer amplifier, designed and engineered in Australia to maximise the performance of Krix passive subwoofers. Built in-house from the ground up, this dual-mono amplifier delivers high output, precise control, and exceptionally low distortion for demanding home cinema systems.

Unlike generic amplifiers, the KA-1100 is specifically tuned for Krix subwoofer systems. Integrated DSP modes ensure optimal performance, protecting the driver while preserving full dynamic range and impact.

Optimised DSP for Krix Subwoofers

The KA-1100 features pre-configured DSP modes tailored for Krix MX-5, MX-10, Cyclonix 11 and Cyclonix 12 subwoofers. Each mode applies carefully engineered high-pass filters, low-pass filters, and limiter settings to maximise output while maintaining control and reliability.

A third mode is available for general subwoofer applications, providing flexibility for non-Krix systems while still benefiting from built-in protection and filtering.

If the input signal exceeds the safe operating limits of the subwoofer, soft limiting is applied. This reduces distortion and prevents damage without introducing harsh compression or audible artefacts.

Dual-Mono Architecture for Maximum Control

The KA-1100 is a true dual-mono amplifier, allowing independent control of two subwoofer channels. This ensures precise level matching and optimal system integration, particularly in multi-subwoofer home cinema environments.

High Efficiency ICEpower™ Class D Amplification

Built around ICEpower™ Class D technology, the KA-1100 delivers high efficiency and stable power output. The design generates minimal heat, allowing for passive cooling and completely silent operation.

A high-current switch-mode power supply ensures consistent performance and sustained output, delivering the dynamics and impact required for cinematic low-frequency reproduction.

Custom 24-bit DSP Engine

At the core of the KA-1100 is a Krix-designed 24-bit signal processor. This DSP platform manages filtering, limiting, and system protection, ensuring accurate signal reproduction and optimal subwoofer performance.

Flexible Connectivity and Integration

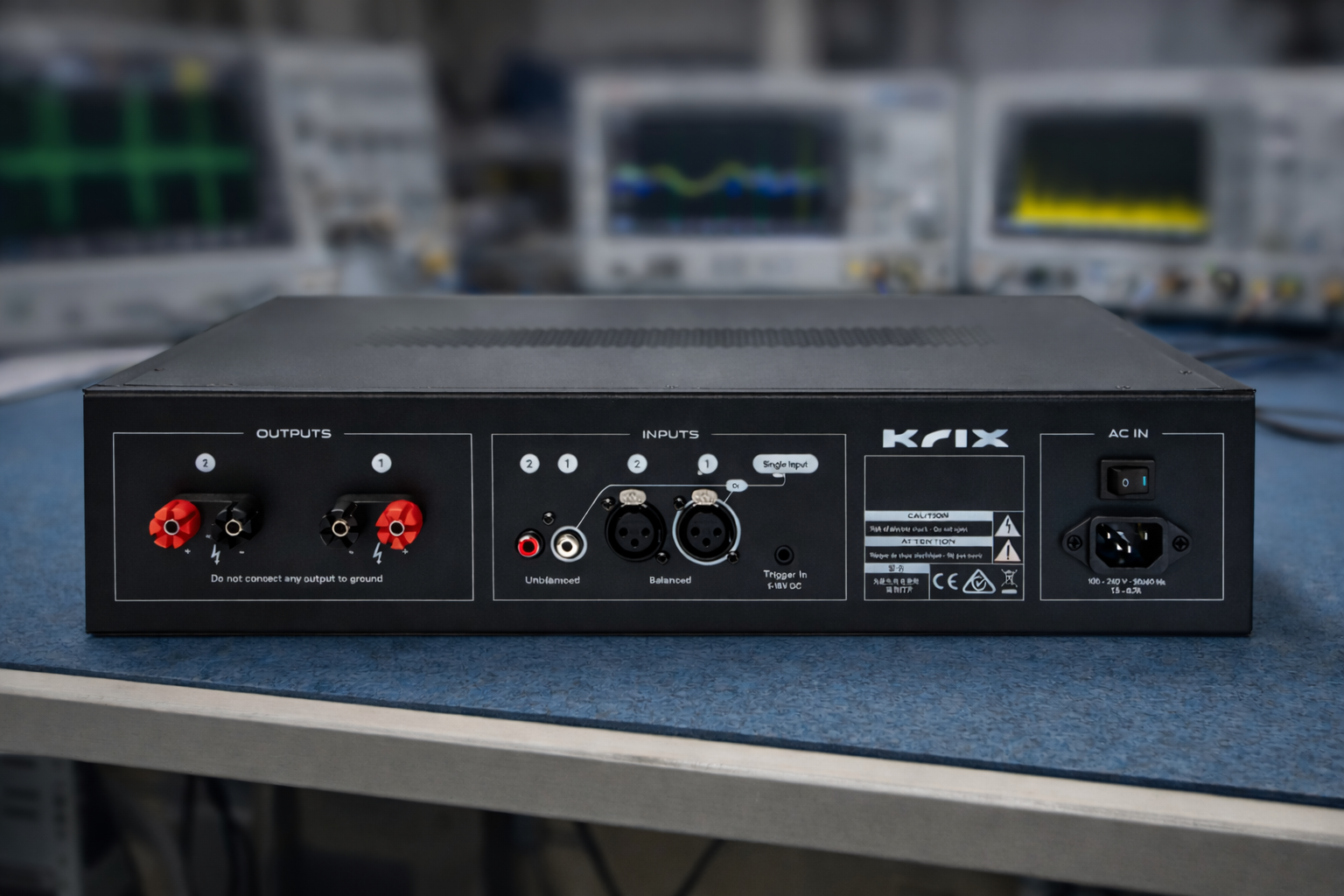

The KA-1100 supports both balanced (XLR) and unbalanced (RCA) inputs, making it compatible with a wide range of AV receivers and processors. A single input mode allows one signal to be distributed to both channels when required.

Signal sensing enables automatic power-on when audio is detected, while a 12V trigger input allows seamless integration with dedicated home cinema systems.

Silent Operation — Fanless Design

With no internal cooling fans, the KA-1100 operates silently. This makes it ideal for dedicated home cinemas and living spaces where background noise must be minimised.

Installation Flexibility

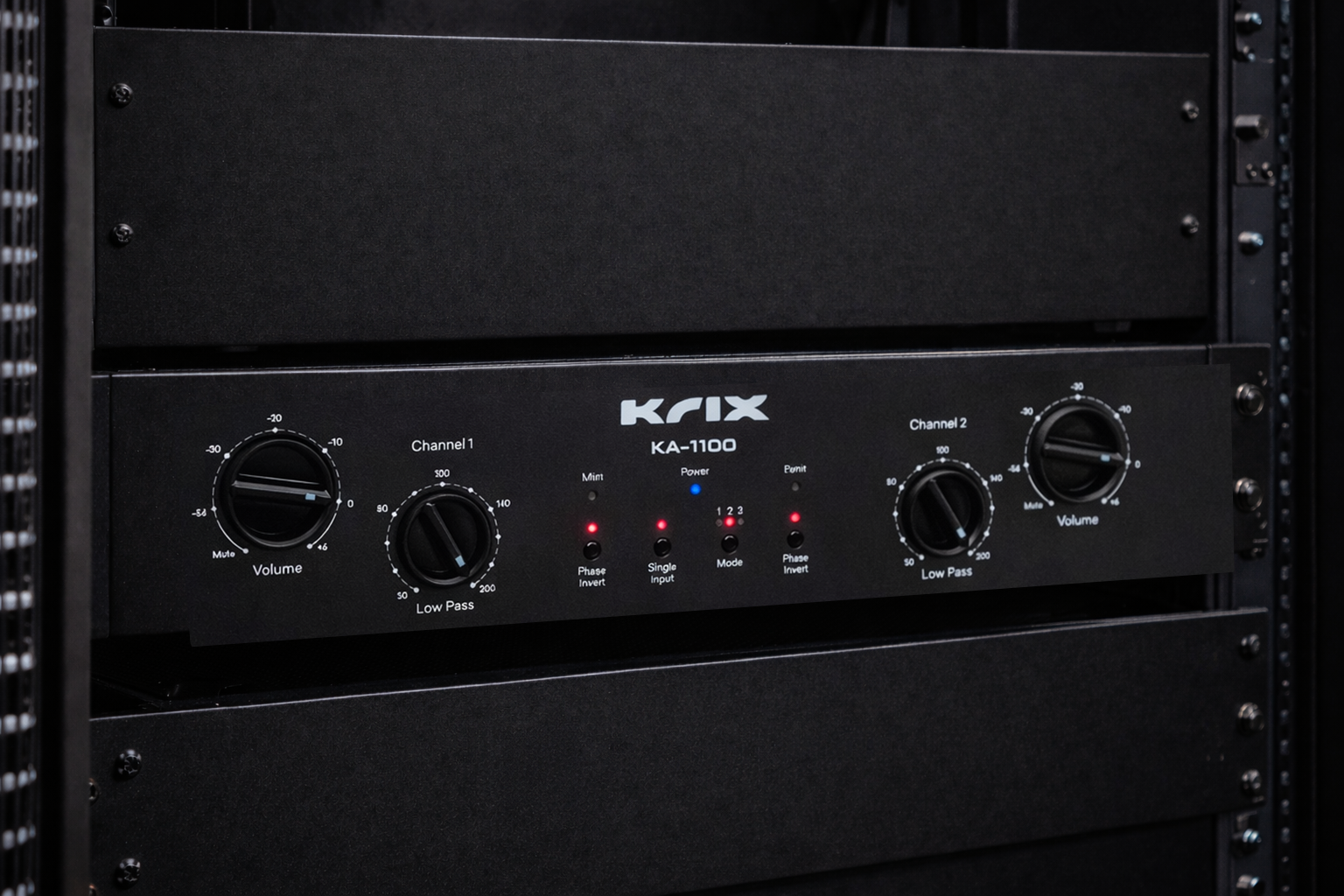

The KA-1100 is designed for both rack-mounted and standalone installations. Rack ears are included, and the removable brushed aluminium fascia provides a clean, minimal appearance while protecting controls after calibration.

Engineered Protection and Reliability

Integrated protection systems include soft limiting, over-current protection, and thermal protection. These systems work together to safeguard both the amplifier and connected subwoofers under demanding conditions.

Applications

• Dedicated home cinema systems
• Multi-subwoofer installations
• Krix MX and Cyclonix subwoofer systems
• High-performance media rooms

Key Features

• Dual-mono subwoofer amplifier design
• Pre-configured DSP modes for Krix subwoofers
• Custom 24-bit Krix DSP processing
• ICEpower™ Class D amplification
• Fanless, silent operation
• Balanced (XLR) and unbalanced (RCA) inputs
• 12V trigger and signal sensing
• Rack mountable with removable fascia
• Designed and assembled in Australia

Experience Controlled, Powerful Bass

The KA-1100 is not a general-purpose amplifier. It is a dedicated subwoofer control system designed to extract maximum performance from Krix subwoofers while maintaining precision, reliability, and dynamic impact.

For system design, setup advice, or demonstration, contact CDA ProAV or visit our showroom to experience the full capability of Krix subwoofer systems.
