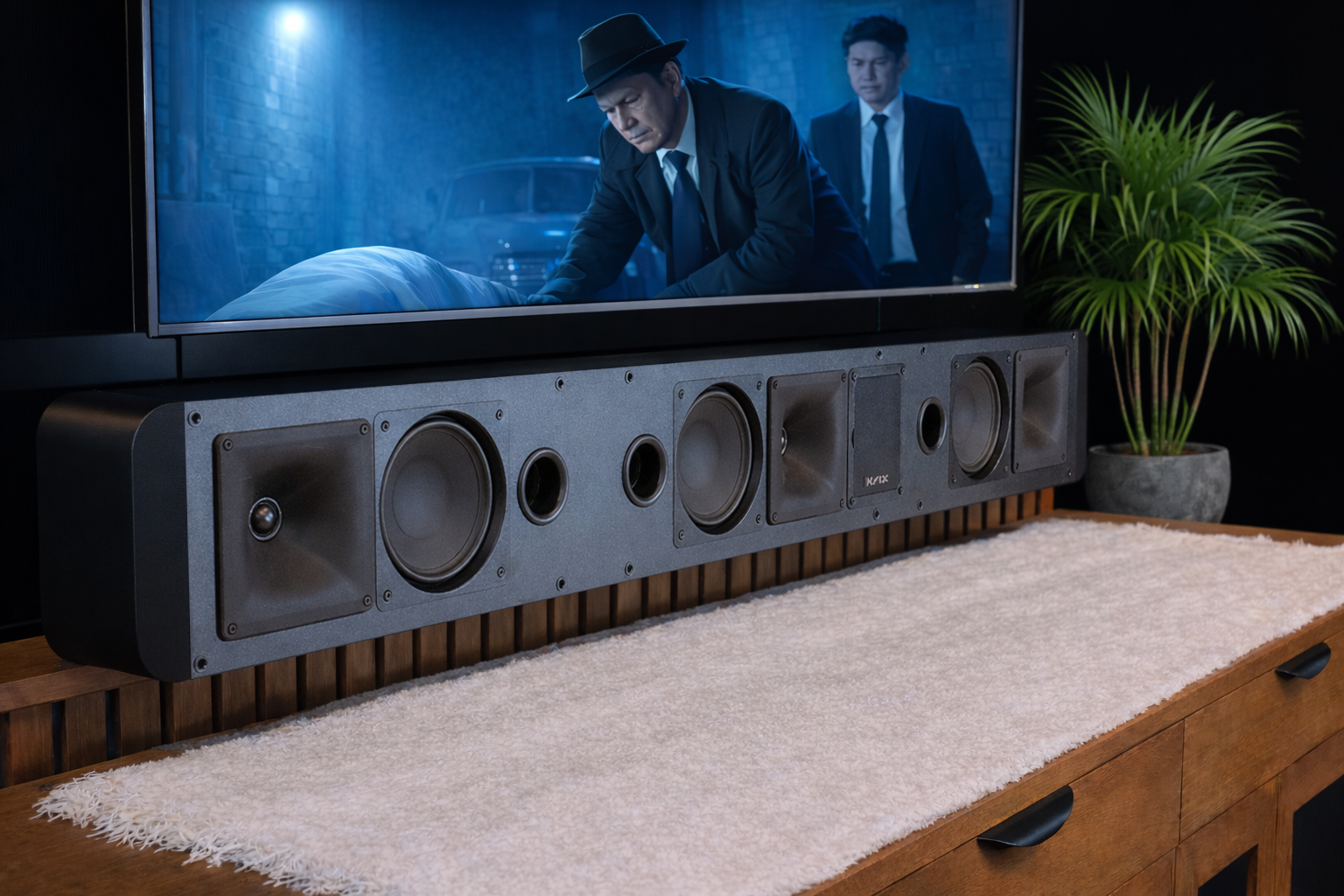

Krix LX-7 — True Cinema Sound for Large Screens

The Krix LX-7 is a high-performance passive LCR loudspeaker, engineered and manufactured in Australia for screen sizes 75 inches and above. Designed for serious home cinema environments, it delivers true left, centre and right channel reproduction without relying on virtual or “bouncing” sound effects.

With its slim profile and elegant design, the LX-7 integrates seamlessly above or below your display while maintaining accurate, high-output performance. When combined with Krix surround speakers and a dedicated subwoofer system, it creates a complete and immersive cinema experience at home.

True LCR Cinema Performance

The LX-7 is a genuine three-channel solution in a single enclosure. It reproduces left, centre and right channels with precision, ensuring clear dialogue, stable imaging, and seamless panning across the screen.

Unlike soundbars that rely on digital processing, the LX-7 delivers real acoustic performance. This results in a more natural and convincing cinematic soundstage.

Controlled Dispersion with Krix Waveguide Technology

Three Krix-designed 90° × 90° short-throw waveguides provide controlled dispersion and consistent coverage across the listening area. This improves clarity and efficiency while reducing distortion at higher output levels.

The result is powerful, dynamic sound that remains clean and intelligible, even in larger rooms.

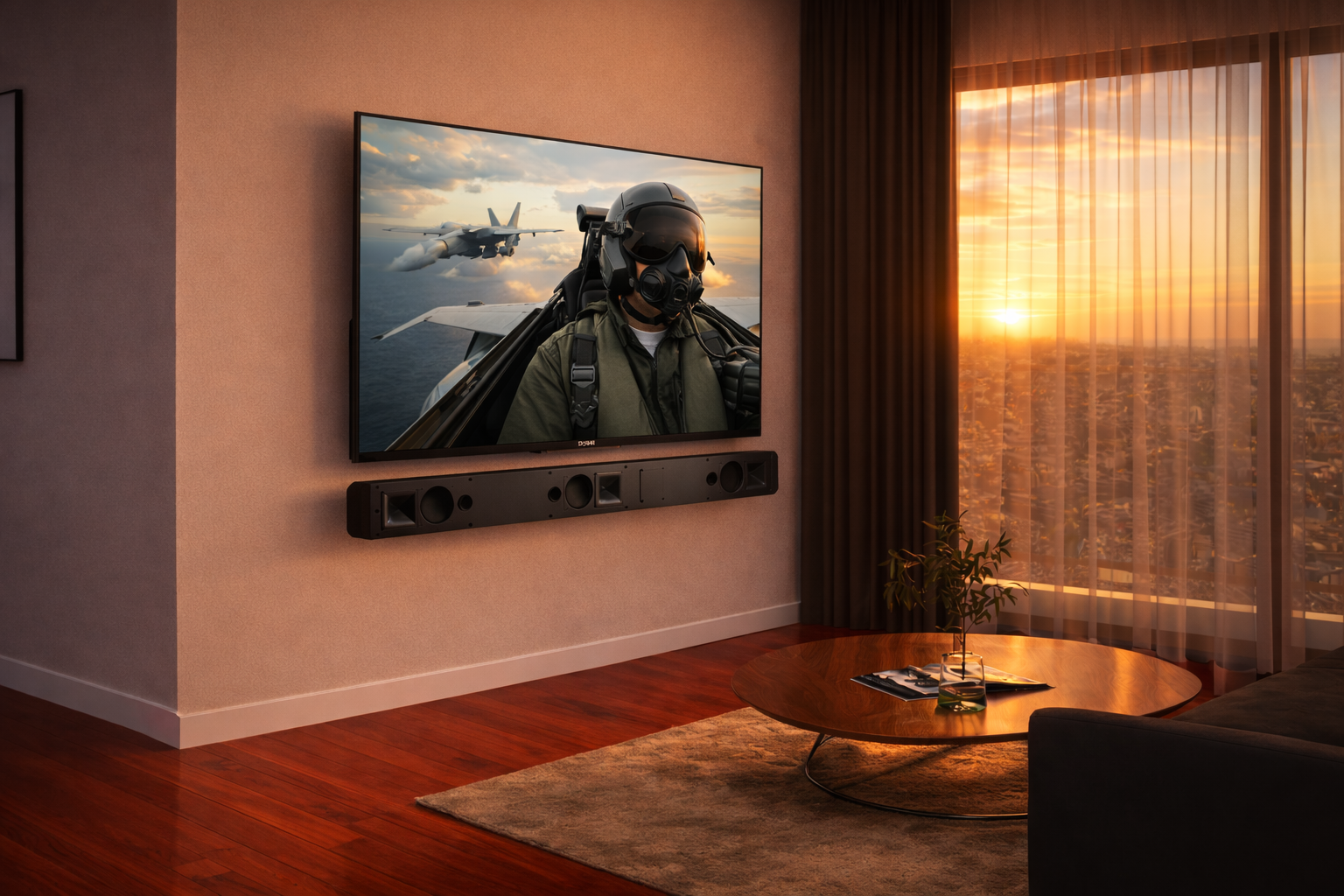

Flexible Installation with Tilting Bracket

The included mounting bracket allows the LX-7 to be installed flush against the wall or angled up to ±15 degrees. This ensures optimal alignment with the listening position for improved sound dispersion and accuracy.

Seamless System Integration

The LX-7 is tonally matched to all Krix surround and overhead speakers. This ensures consistent sound character across the entire system, which is critical for immersive formats such as Dolby Atmos.

For full-range performance, the LX-7 should be paired with one or more Krix subwoofers to reproduce low frequencies with authority and precision.

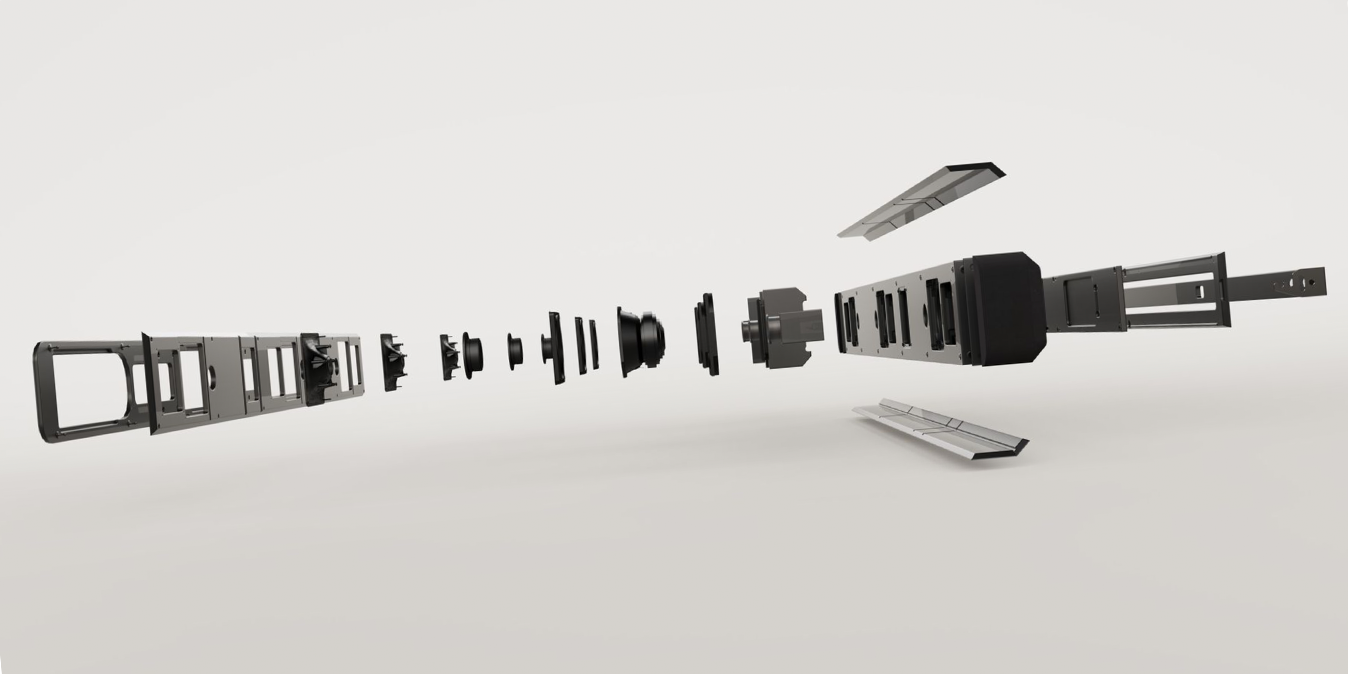

Engineered for Performance

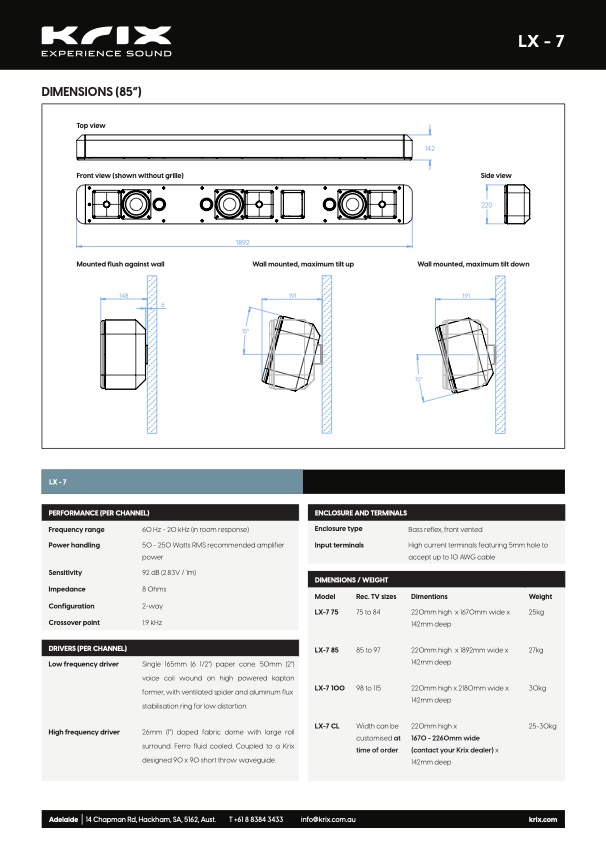

Each channel features a 165mm (6.5”) low-frequency driver with a high-power voice coil and flux stabilisation ring for low distortion. The high-frequency driver is a 26mm fabric dome, coupled to a precision Krix waveguide for controlled dispersion.

With a sensitivity of 92dB and recommended amplifier power of 50–250 watts RMS, the LX-7 is efficient and capable of delivering high output levels suitable for demanding home cinema applications.

Australian Made — Since 1974

Krix has been designing and manufacturing loudspeakers in Australia since 1974. The LX-7 continues this tradition with precision engineering and a focus on real cinema performance.

Applications

• Large screen TVs (75” and above)
• Media rooms and living room cinemas
• Dedicated home theatre systems
• Upgrade from soundbars to true LCR performance

Key Features

• True LCR speaker in a single enclosure
• Three 90° × 90° Krix waveguides for controlled dispersion
• Adjustable wall mounting (±15° tilt)
• Tonally matched to Krix surround and Atmos speakers
• High sensitivity for efficient amplification
• Slim design for clean installation
• Designed and manufactured in Australia

Experience Real Cinema at Home

The LX-7 is not a soundbar. It is a true cinema loudspeaker system designed for accuracy, power, and immersion. When installed correctly and paired with a Krix subwoofer system, it delivers a level of performance far beyond conventional solutions.

For system design, demonstration, or installation advice, contact CDA ProAV or visit our showroom to experience Krix for yourself.
